Vaillant heat pump arotherm plus
Description
Description

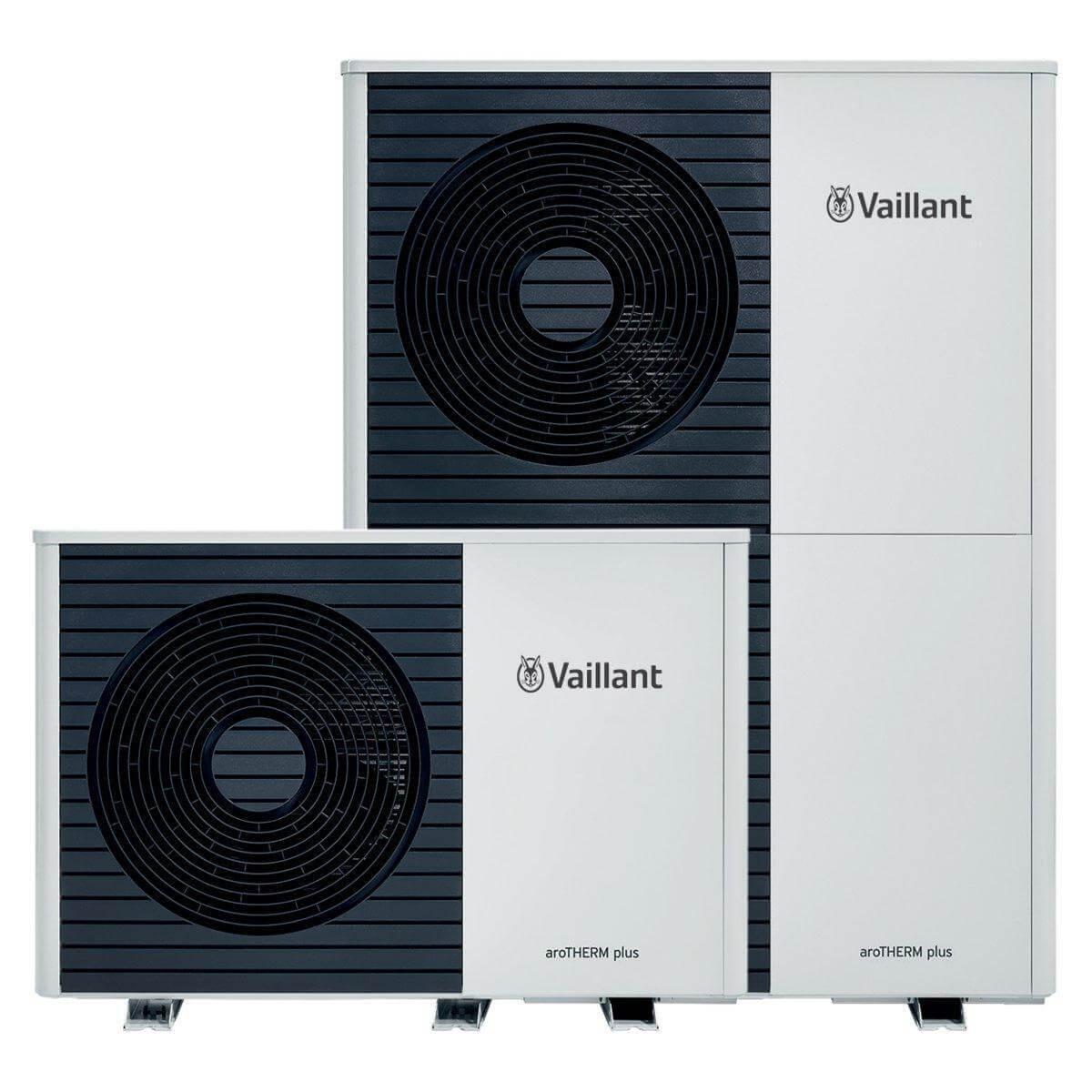

Vaillant heat pump aroTHERM plus
As compact as it is effective, the Vaillant air/water heat pump
Our aroTHERM plus is an outdoor air-to-water heat pump with a monoblock design and a footprint of just 0.5 m². The heat is generated in the outdoor unit and transferred via supply lines to the indoor unit in the boiler room. The aroTHERM plus is perfectly complemented by an indoor hydraulic unit, such as our uniTOWER plus hydraulic tower. With its integrated 185-liter storage tank, this easily covers the hot water needs of a family of four. For higher hot water requirements, our wall-mounted hydraulic station and a suitable hot water tank are suitable.
Because the aroTHERM plus uses the natural refrigerant R290, its 7–12 kW output makes it ideal for climate-conscious modernization. Replacing old oil or gas heating systems in single-family homes is no problem. The refrigerant enables high flow temperatures in heat pump mode, allowing existing radiators to be used. Another advantage: R290 has a very low global warming potential. With a COP of up to 3.3 and 3.8, our aroTHERM plus is also very efficient and environmentally friendly. Alternatively, it can also be installed in new buildings.
The quietest heat pump in its class
The integrated Sound Safe System ensures that the aroTHERM plus operates particularly quietly. This makes it ideal for use even in densely built-up areas, such as terraced housing projects. The sound output is only 46 dB(A) in night mode, and only 29 dB(A) at a distance of 3 meters. This means that the aroTHERM plus easily falls below the German Technical Inspection Association's noise guidelines in densely built-up residential areas.
Important instructions!
Requires multiMATIC 700 or sensoCOMFORT 720. Accessory coding resistor is also required for active cooling operation.
Product features:
- Modulating EC fan
- High-efficiency pump
- Sensor-controlled refrigeration circuit
- Integrated R290 security concept
- Automatic vent valve
- Cooling mode can be activated with a coding plug (the heating system must be prepared on site for this)
Special features:
- High flow temperatures for modernization
- Modulating compressor with inverter technology always adjusts the performance to the current building heating load
- SoundSafeSystem for particularly quiet operation
- Can also be integrated into an existing heating system
- Can be operated bivalently alternatively, in parallel or with the triVAI parameter in the hybrid system
- Intelligent use of self-generated energy (PVready)
Scope of delivery: Vaillant heat pump aroTHERM plus
1 aroTHERM VWL
1 condensate drain
1 bag of seals
1 vent hose
1 operating and installation manual
1 product data sheet, energy efficiency label
Technical data: Vaillant heat pump aroTHERM plus
| VWL 35/6 A | VWL 55/6 A | VWL 75/6 A | VWL 105/6 A | VWL 125/6 A | |
|---|---|---|---|---|---|
| Energy efficiency class 55°C (A+++ - D) | A+ | A++ | A++ | A++ | A++ |
| Energy efficiency class 35°C (A+++ - D) | A++ | A+++ | A+++ | A+++ | A+++ |
| Heating output/Electrical output/COP at A-7/W35 | 3.6 kW/ 1.55 kW/2.2 | 5.4 kW/2.08 kW/2.6 | 7.0 kW/2.5 kW/2.8 | 9.2 kW/3.41 kW/2.7 | 12.2 kW/4.52 kW/2.7 |
| Heating output/Electrical output/COP at A2/W35 | 2.0 kW/0.51 kW/3.9 | 2.0 kW/0.51 kW/3.9 | 3.1 kW/0.76 kW/4.1 | 5.8 kW/1.26 kW/4.6 | 5.9 kW/1.28 kW/4.6 |
| Heating output/Electrical output/COP at A7/W35 | 3.3 kW/0.69 kW/4.8 | 3.4 kW/0.71 kW/4.8 | 4.6 kW/0.96 kW/4.8 | 8.1 kW/1.53 kW/5.3 | 8.5 kW/1.57 kW/5.4 |
| Heating output/Electrical output/COP at A10/W35 | 3.4 kW/0.64 kW/5.3 | 3.5 kW/0.66 kW/5.3 | 4.8 kW/0.92 kW/5.2 | 8.7 kW/1.53 kW/5.3 | 8.8 kW/1.54 kW/5.7 |
| Cooling capacity/Electrical power/EER at A35/W18 | 4.5 kW/1.05 kW/4.3 | 4.5 kW/1.05 kW/4.3 | 6.4 kW/1.52 kW/4.2 | 10.9 kW/2.37 kW/4.6 | 10.8 kW/2.35 kW/4.6 |
| Seasonal space heating efficiency ηS at 35°C | 174% | 181% | 182% | 196% | 193% |
| Seasonal space heating efficiency ηS at 55°C | 123% | 129% | 133% | 141% | 146% |
| Compressor power supply | 230 V/50 Hz | 230 V/50 Hz, 1/N/PE~ | 230 V/50 Hz, 1/N/PE~ | 400 V/50 Hz, 3/N/PE~ | 400 V/50 Hz, 3/N/PE~ |
| ElectricPump power consumption at min | 2 W | 2 W | 2 W | 3 W | 3 W |
| Electrical power consumption pump (max) | 50 W | 50 W | 50 W | 87 W | 87 W |
| Contents heating side | 1.5 l | 1.5 l | 2.0 l | 2.5 l | 2.5 l |
| Max. operating pressure on the heating side | 3 bar | 3 bar | 3 bar | 3 bar | 3 bar |
| Heating temperature (min.-max.) | 22-75 °C | 22-75 °C | 22-75 °C | 22-75 °C | 22-75 °C |
| Hot water temperature with additional heating (Max.) | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C |
| Max. power consumption | 3.4 kW | 3.4 kW | 3.4 kW | 8.0 kW | 8.0 kW |
| Starting current | 14.3 A | 14.3 A | 15 A | 15 A | 15 A |
| Pump flow rate at 5K (residual head) | 580 l/h (780 mbar) | 580 l/h (780 mbar) | 790 l/h (640 mbar) | 1418 l/h (788 mbar) | 1480 l/h (730 mbar) |
| Heating connection (flow and return) | G 1 1/4 | G 1 1/4 | G 1 1/4 | G 1 1/4 | G 1 1/4 |
| Sound power level (A7/W55) | 54 dB(A) | 54 dB(A) | 55 dB(A) | 59 dB(A) | 59 dB(A) |
| Product dimensions (height/width/depth) | 765/1,100/450 mm | 765/1100/450 mm | 965/1100/450 mm | 1,565/1,100/450 mm | 1565/1100/450 mm |
| Product weight | 114 kg | 114 kg | 128 kg | 210 kg | 210 kg |
| Refrigerant quantity | 0.6 kg | 0.6 kg | 0.9 kg | 1.3 kg | 1.3 kg |
| Refrigerant (natural) | R290 | R290 | R290 | R290 | R290 |
| Global warming potential according to regulation (EU) | 3 | 3 | 3 | 3 | 3 |
| CO2 equivalent | 0.0018 t | 0.0018 t | 0.0027 t | 0.0039 t | 0.0039 t |
