Heat meter 1" Set Qp 2.5m³/h
Provider:
Allmess
inkl. MwSt. / zzgl. Versand
Guaranteed safe checkout
Heat meter 1" Set Qp 2.5m³/h
Heat meter 1" Set Qp 2.5m³/h

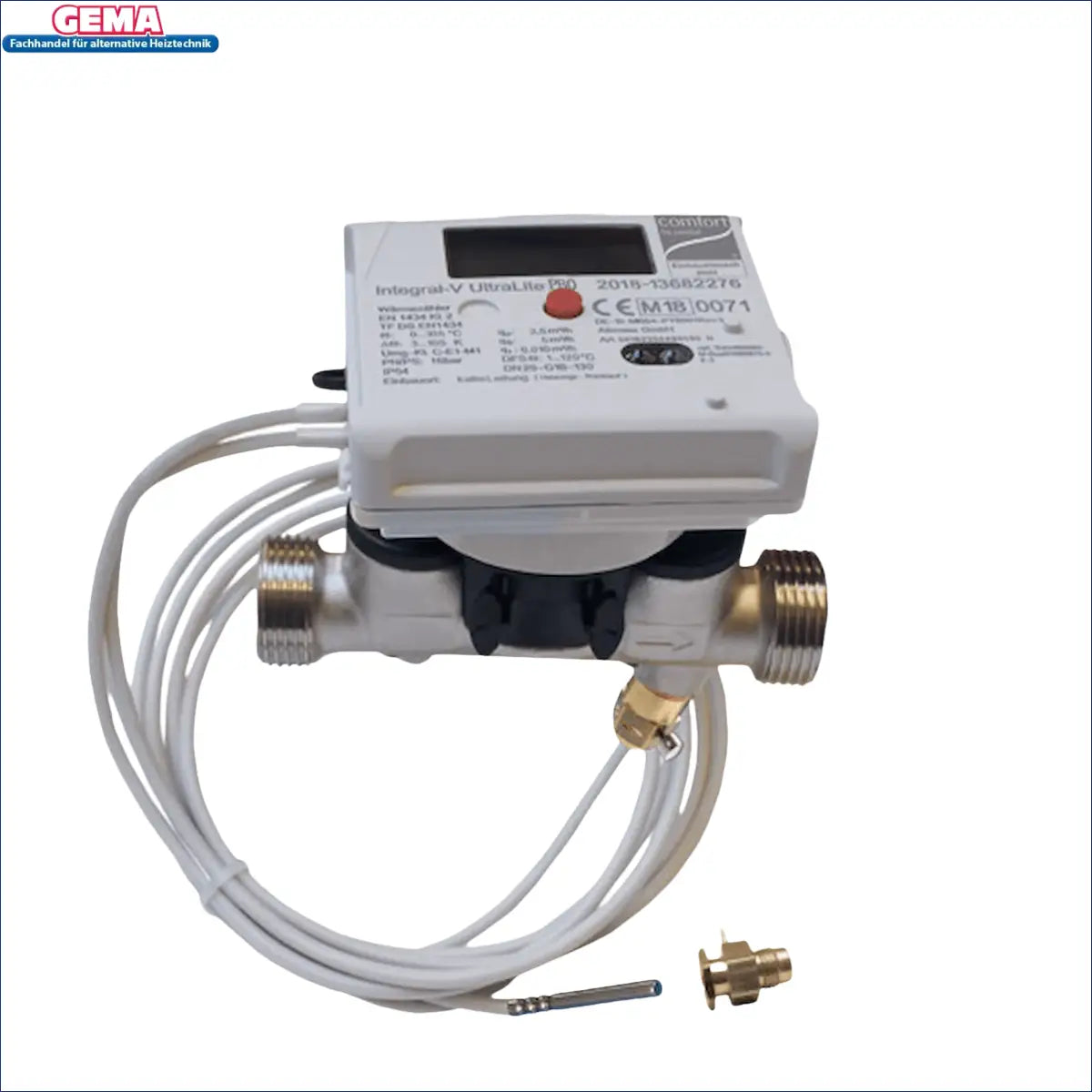

The ultrasonic compact heat meter Integral-V UltraLite PRO is the innovative result consistent further development of the proven integral compact heat meters series.
HIGH SAMPLING RATES FOR USE WITH HEAT EXCHANGERS
The standard programming for high sampling rates enables the most accurate
Consumption recording even in heating systems with strongly fluctuating temperatures,
such as in conjunction with heat exchangers and fresh hot water stations.
The temperature measurement takes place every 3.5 seconds and the volume measurement every 3 seconds.
INSTALLATION IN ALL POSITIONS
The flow sensor is suitable for installation in all vertical or horizontal positions
approved, even overhead. This, together with the flexible
Calculator mounting always a perfect reading position.
PERFORMANCE FEATURES: Heat meter 1"
- Exceptionally large measuring range
- Different options for integration in remote reading systems
- Standard with a high sampling rate equipped
- Optional use for combined Heating/cooling systems
- Removable calculator
Scope of delivery: heat meter 1"
- 1xCompact heat meter 1" Allmess Ultra-Lite qp 2.5-15-130 TF 5.2-1.6m/Cbs

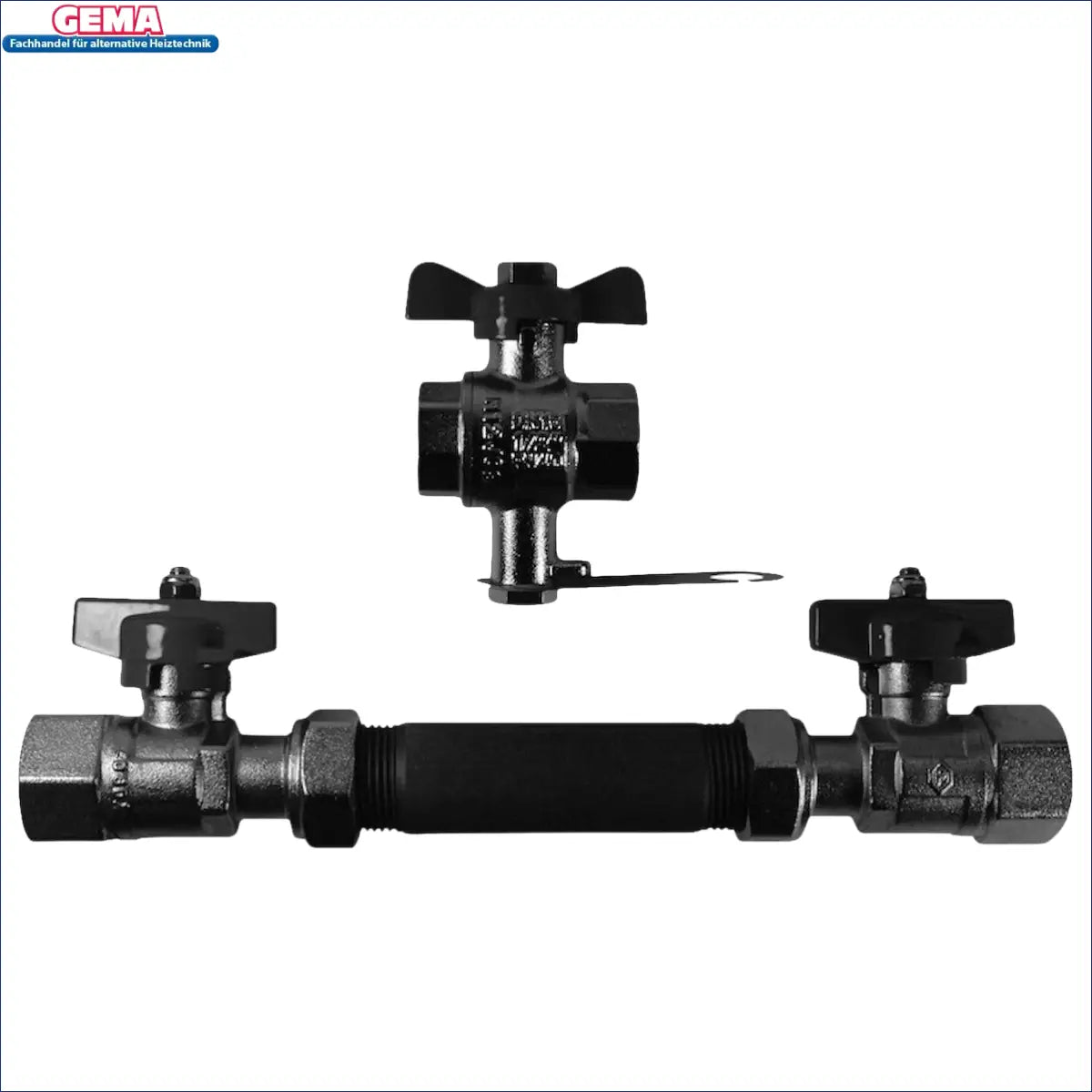

- 1x Allmess installation kit for compact heat meters CF Echo II and CF 51 EBS DN 20 G
- 1"x130-D-KH/CbS including calibration fees/conformity fees
Download
