Chimney kit Niko ceramic with simple assembly and low weight

Chimney kit 3-layer solid

Ceramic chimney NIKO Uni: is a chimney for solid fuels, gas and oil

Massive Ceramic chimney Developed by NIKO, a leading manufacturer in the field of chimney construction, the ceramic chimney offers the highest quality and outstanding performance for all common fuels (How z.B. wood, coal, gas and oil).

Thanks to its first-class workmanship and high-quality materials, the NIKO UNI easily withstands extreme temperatures and acidic condensate. For additional Security The Niko UNI ensures through its Sootfire resistance and fire resistance class F 90 (90 minutes).

The simple assembly and perfect coordination of the components make the NIKO UNI ideal for both indoor and outdoor installation. Its low weight allows for effortless handling and relocation. The system consists of Mantle stones and ceramic pipes with excellent thermal insulation panels of very high quality, which enables smooth operation of modern fireplaces with low flue gas temperatures and high levels of efficiency.

Thanks to factory prefabricated parts for easy self-assembly, The NIKO UNI offers customers the possibility of constructing the chimney in a very short time. Certified components guarantee a stable construction and safe operation with maximum flexibility.

The Niko UNI chimney is available as a single-, double- or triple-flue chimney version with a ventilation shaft.

Multi-pass variants or additional connections and inspection openings on Inquiry.

Special features:

• Exhaust system according to approval no. Z-7.1-3489
• Certificate DIN EN 13063-1
• T600 N1 D 3 G50 LA90
• Easy assembly
• High resistance
• Fire resistance class F90 (L90)
• EU certification
• CE marking
• Also available with 1 x or 2 x multifunctional shaft (air shaft)
• Suitable for fuels coal, wood, gas, oil and briquettes
• External dimensions (shaft): 360 x 360 mm

Features:

• Easy assembly (all elements are perfectly matched),
• Low weight,
• Resistant to chimney fire, acid condensate and moisture,
• Flexible usage options (indoor, outdoor, 90 or 45 degree flue connection, with or without ventilation, concrete slab, insulation, etc.)
• Various combination options (single-pass, double-pass or single-pass with extractor)
• Inner diameter from 140 to 300mm
• 90 minutes fire resistance,
• 30-year guarantee
• DIBt – Building Inspection Approval

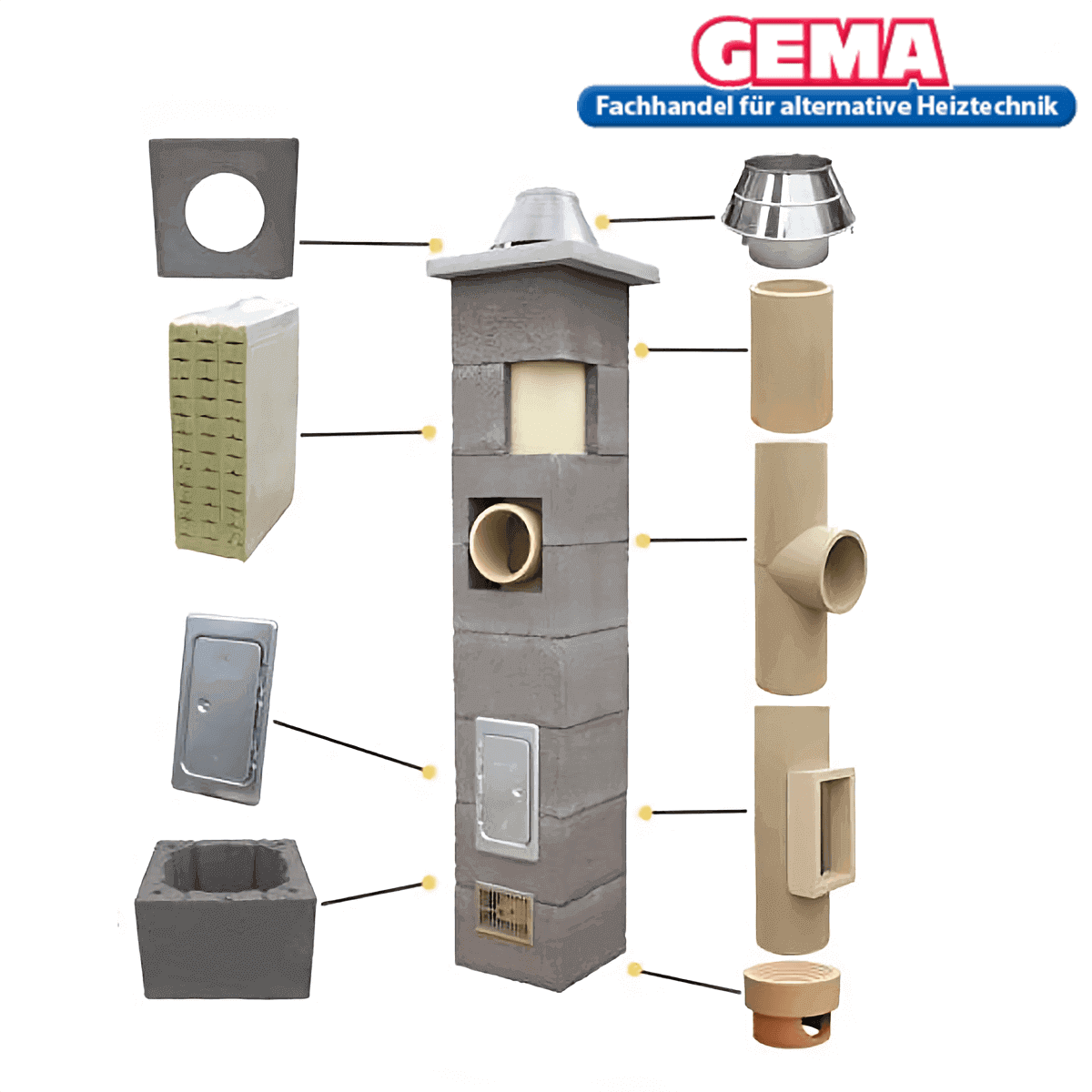

Scope of delivery

• Mantle stones 36x36cm – according to length

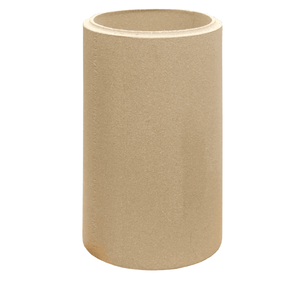

• Clay pipes – according to length.

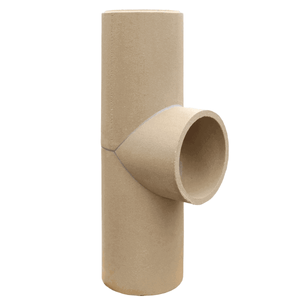

• Flue connection 66cm height – 1 pc

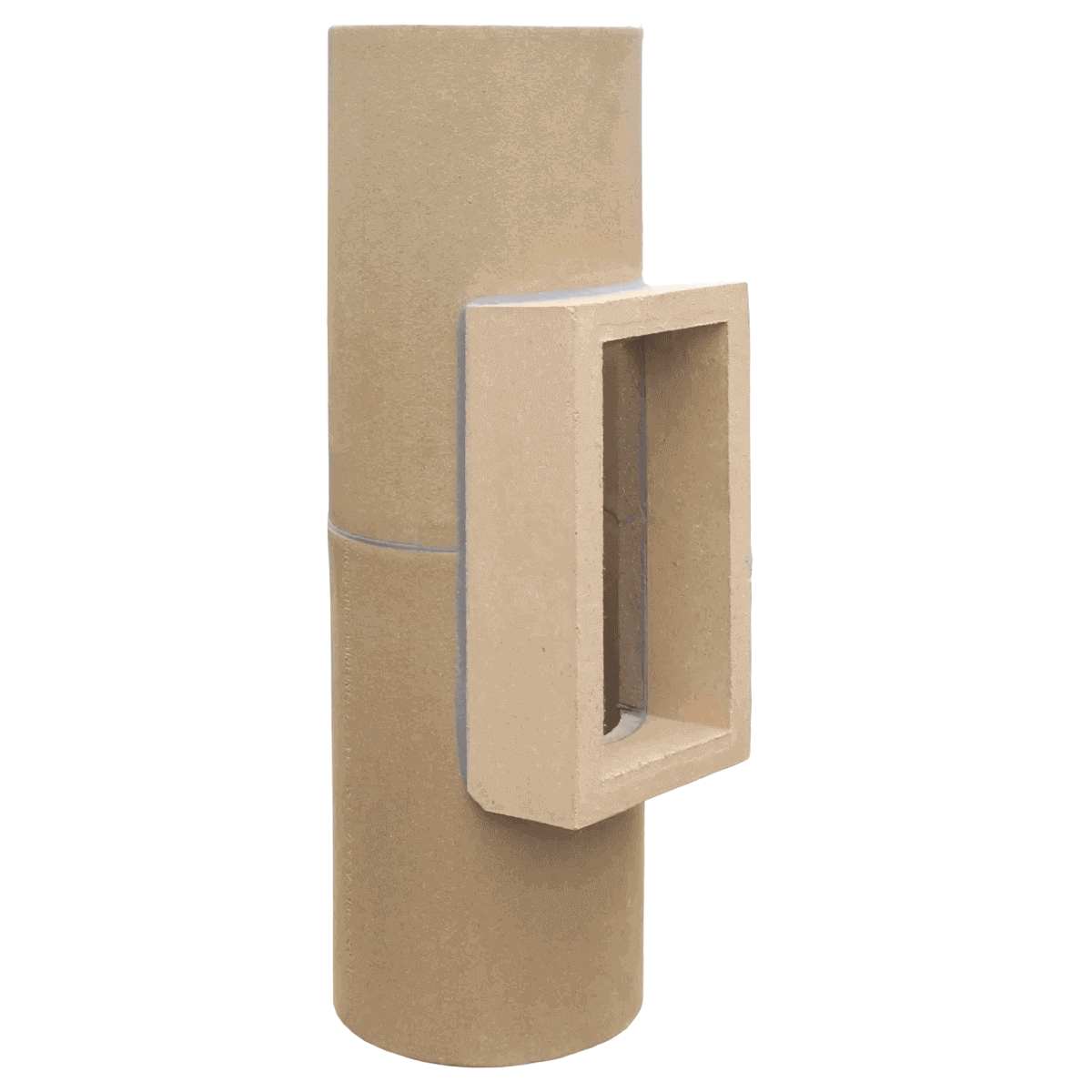

• Cleaning element 66cm height – 1 pc.
• Acid putty 2kg – 1 pc.

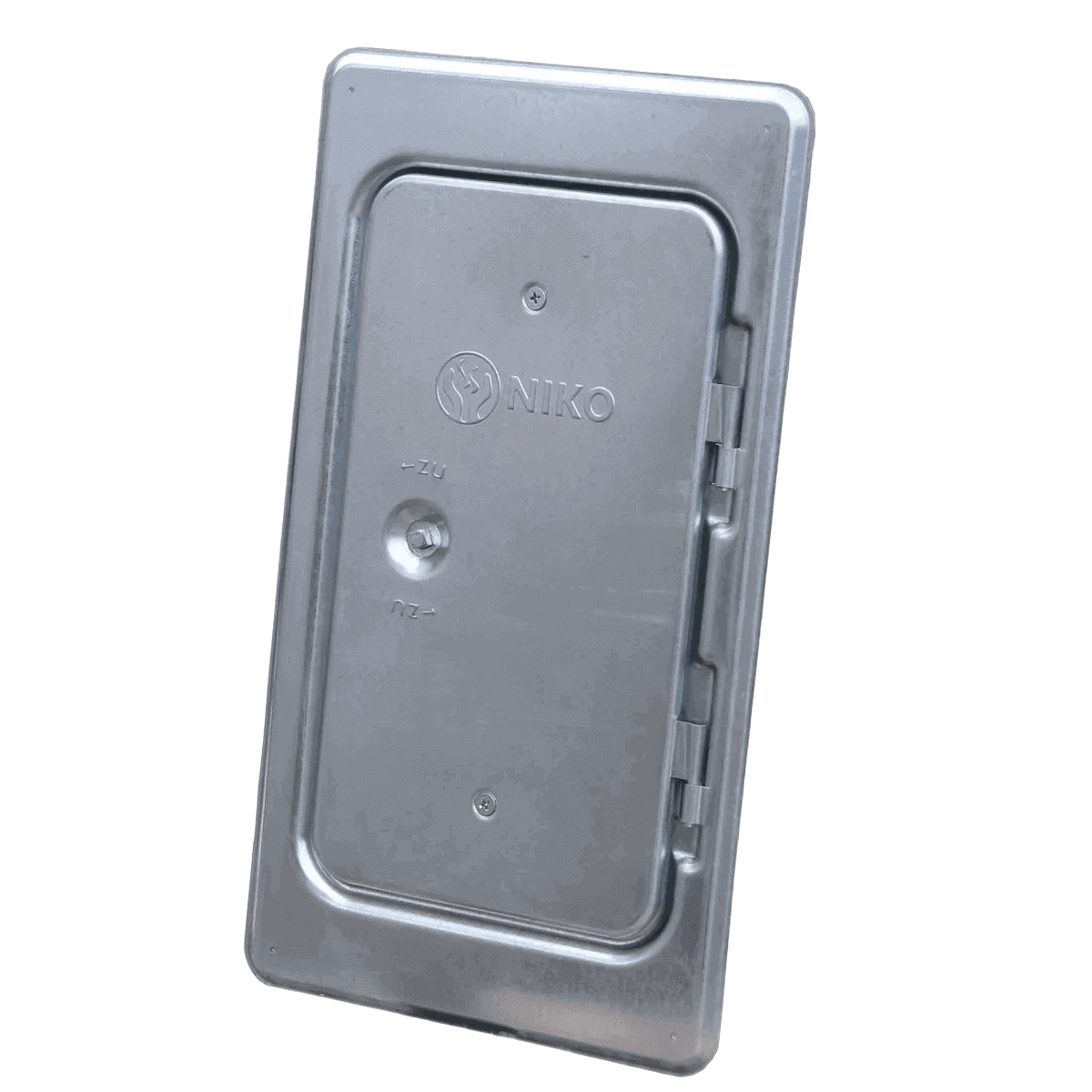

• Cleaning door – 1 pc.

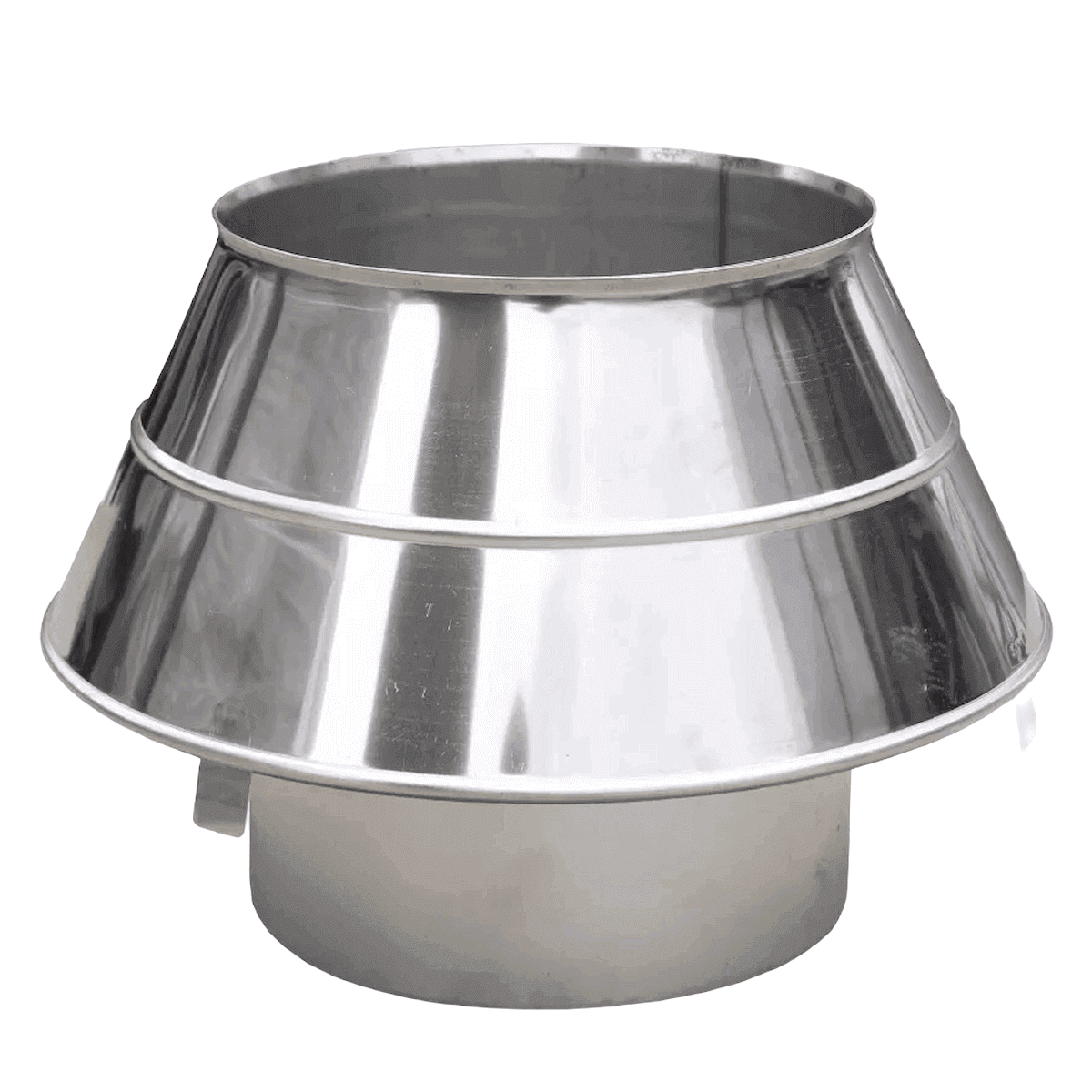

• Muzzle cone – 1 pc.

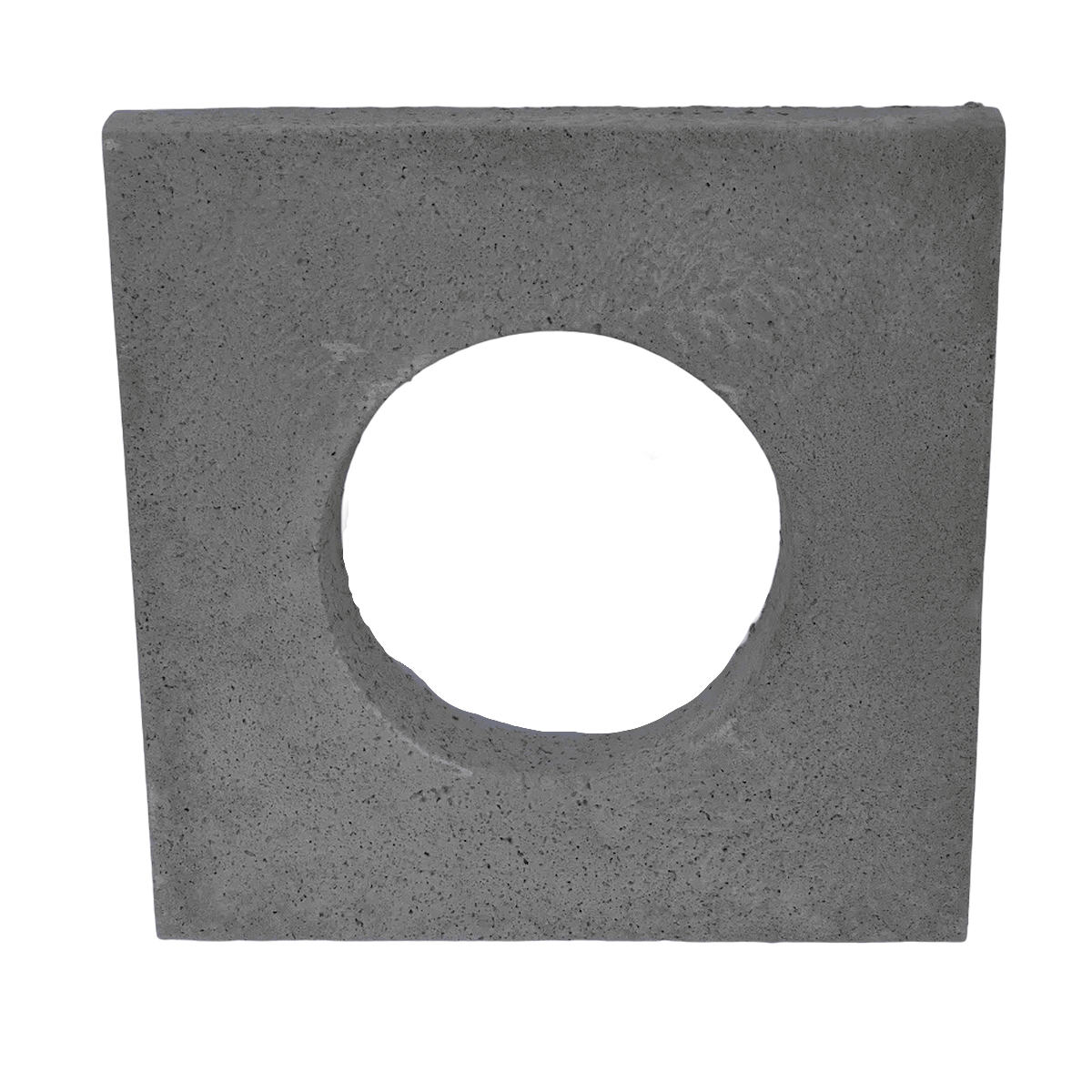

• Concrete cover plate 46x46cm – 1 pc.

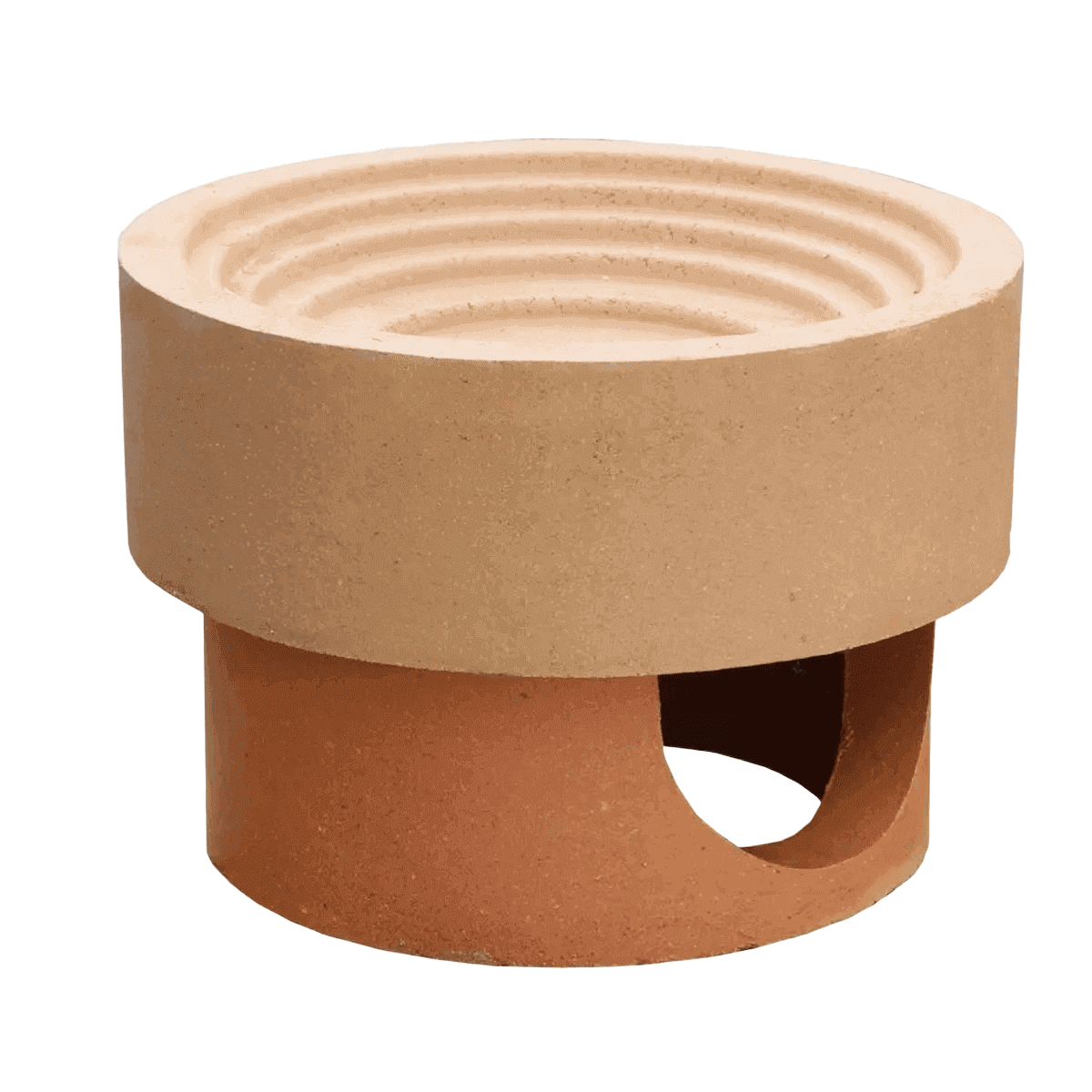

• Condensate drain – 1 pc.

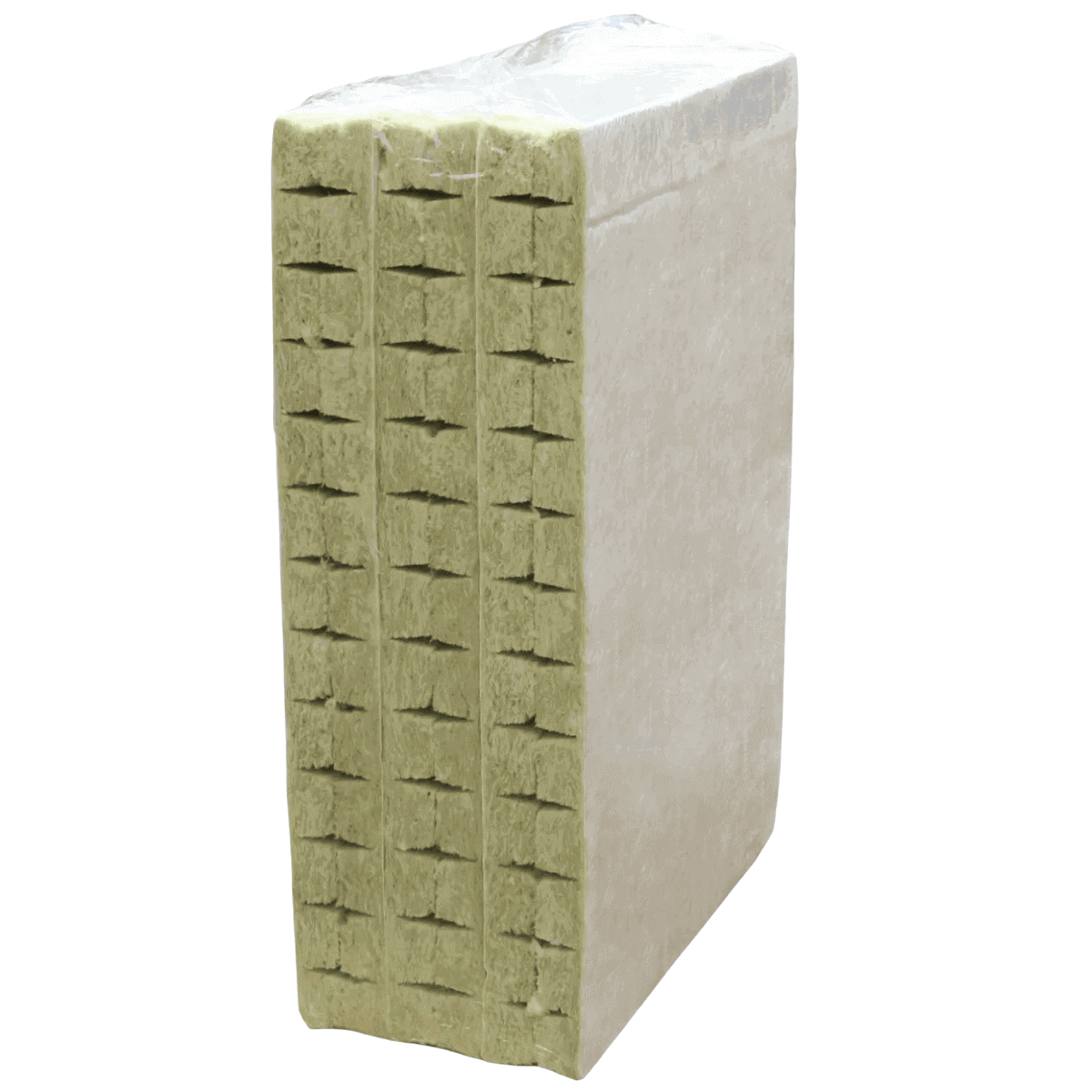

• Insulation – according to length
• Assembly instructions

Download

• Assembly instructions
• certificate
